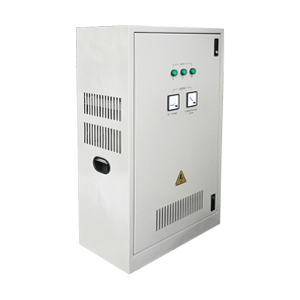

BC 3P 415AC/120DC/3.5kW

Technical specification

Rated Input Voltage:     3P 415V/50Hz

Input Voltage Range:    379.15-435.75V

Rated Output Voltage:   DC120V

Output Voltage Range:   115~125V

Rated Output Current:   29A

Rated Output Power:     3.5kW

Maximum Output Current: 35A(up to 60S)

Efficiency:                     >90%

Cooling Mode:              Natural Cooling

Dimension:                    650*350*1950

Weight:                          <140kg

Input-Output Galvanic Isolation with MF Transformer

Application

Diesel Locomotive

Sudan

Installed quantity

17
